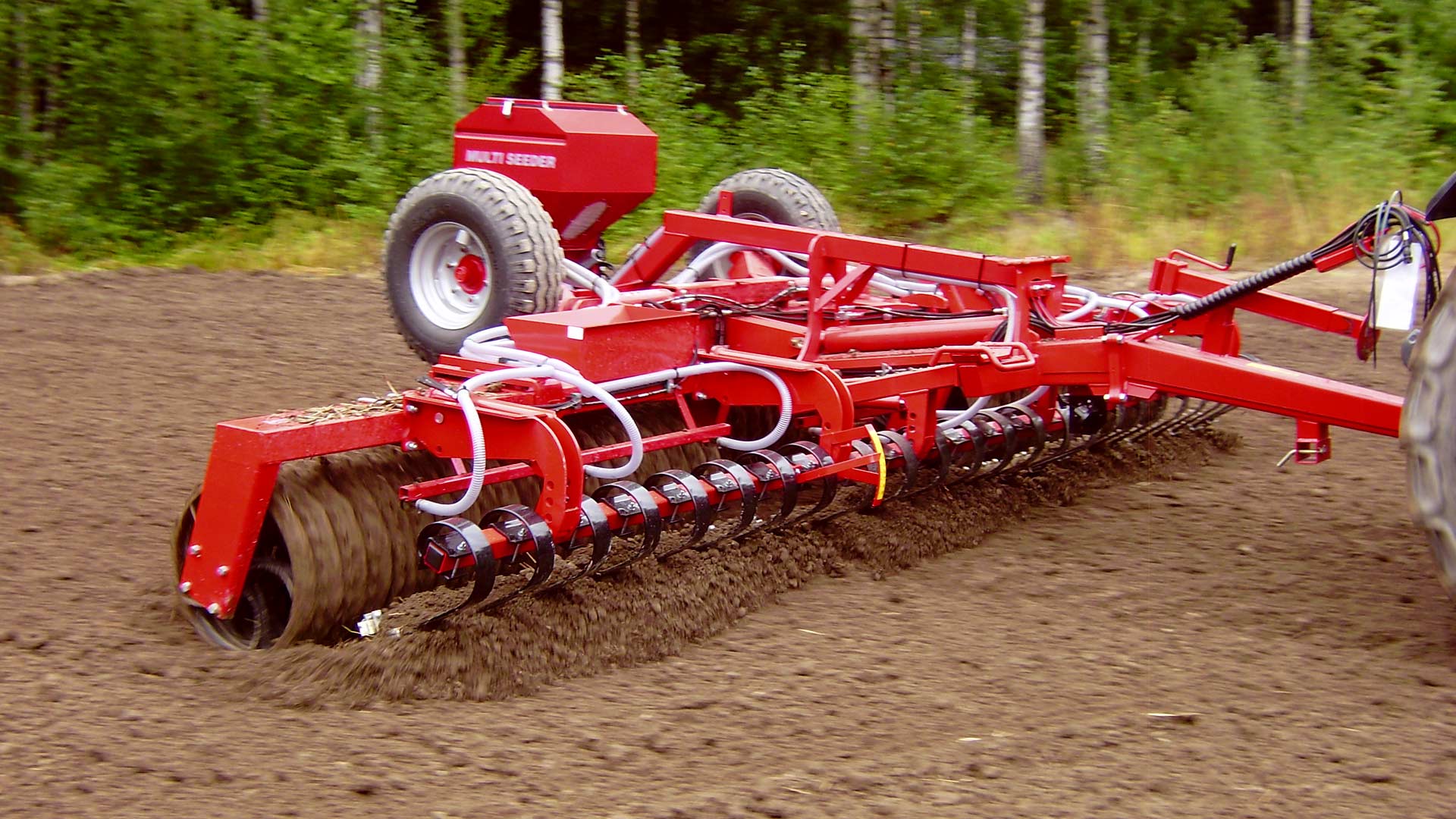

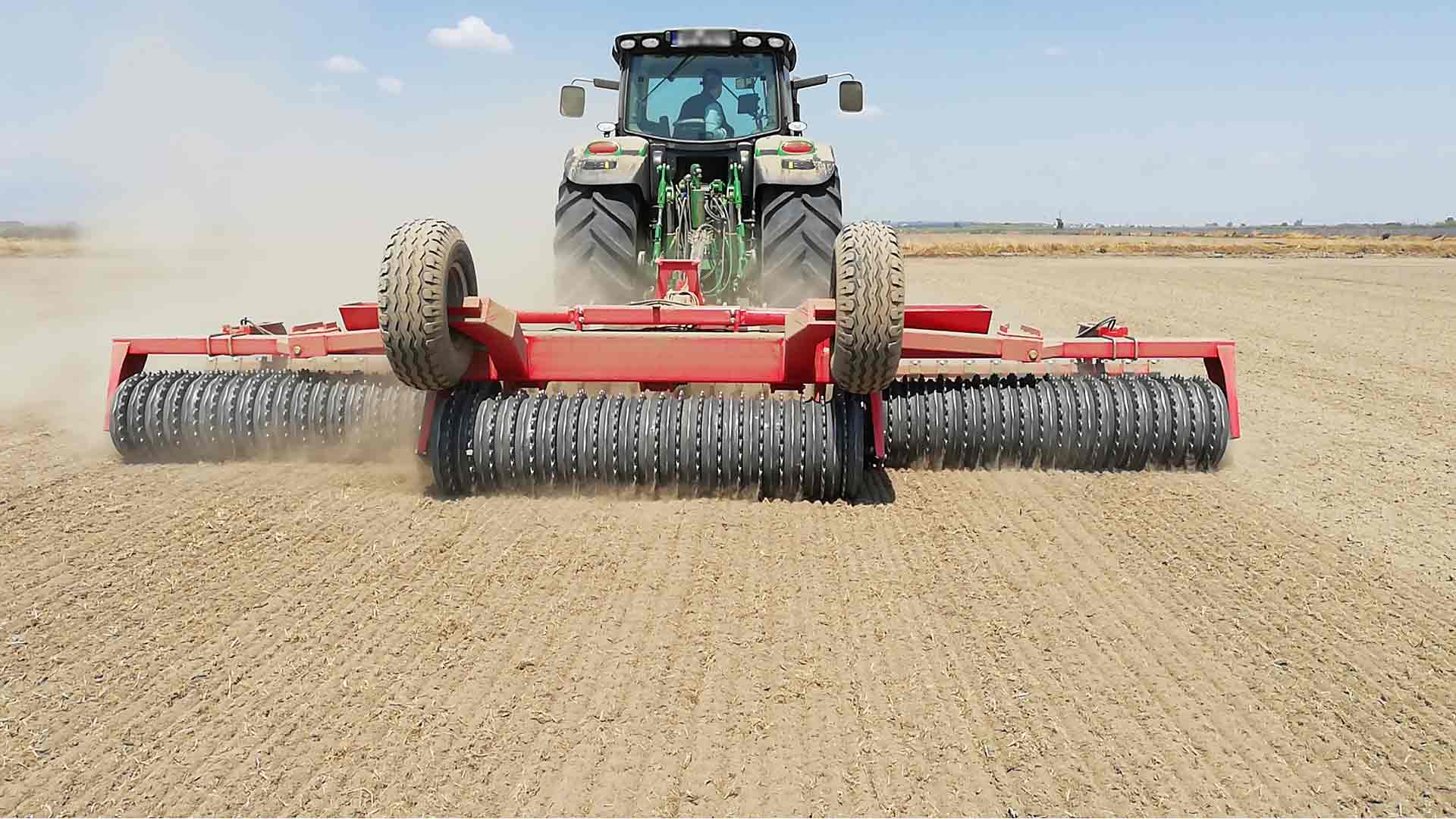

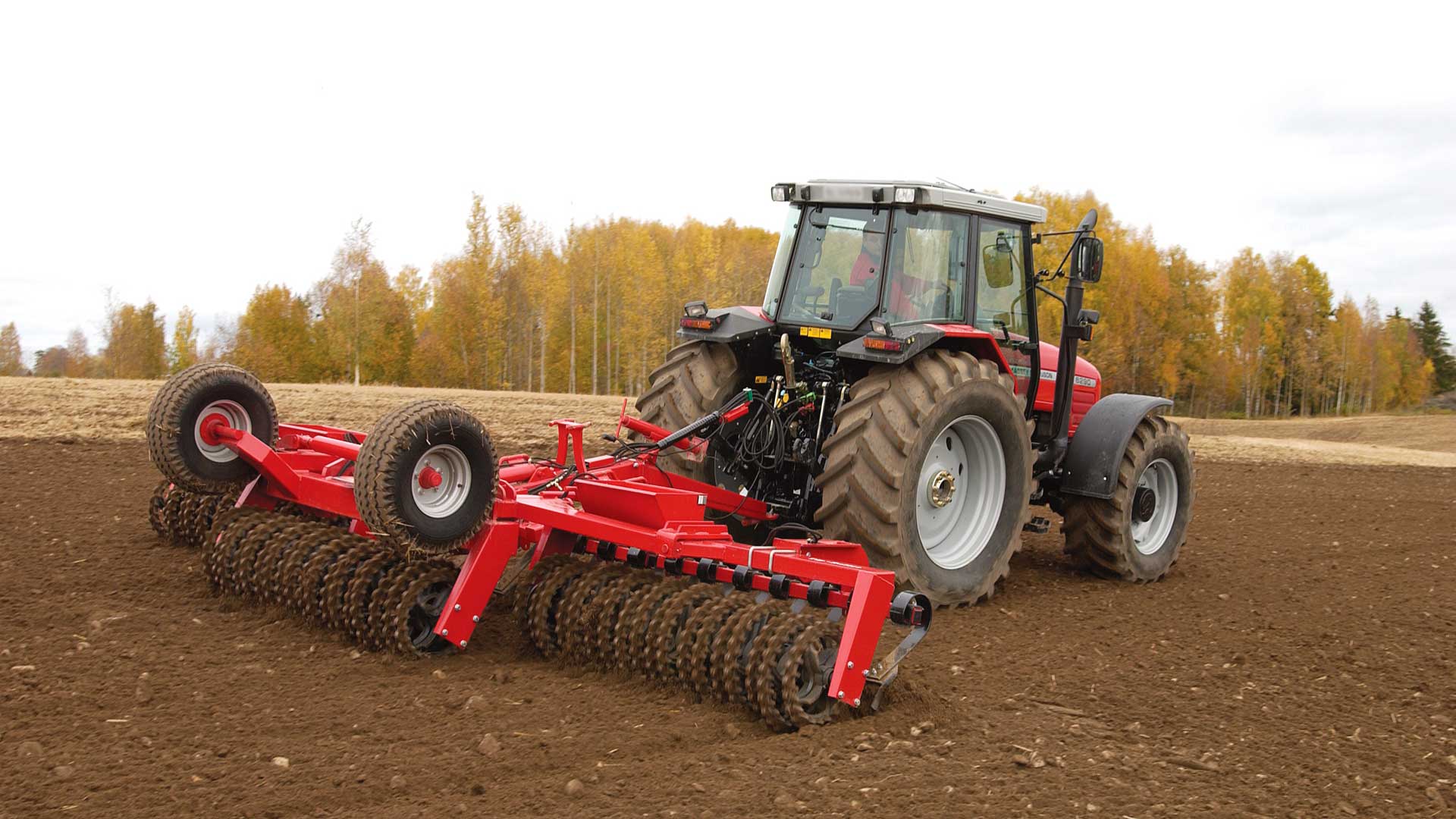

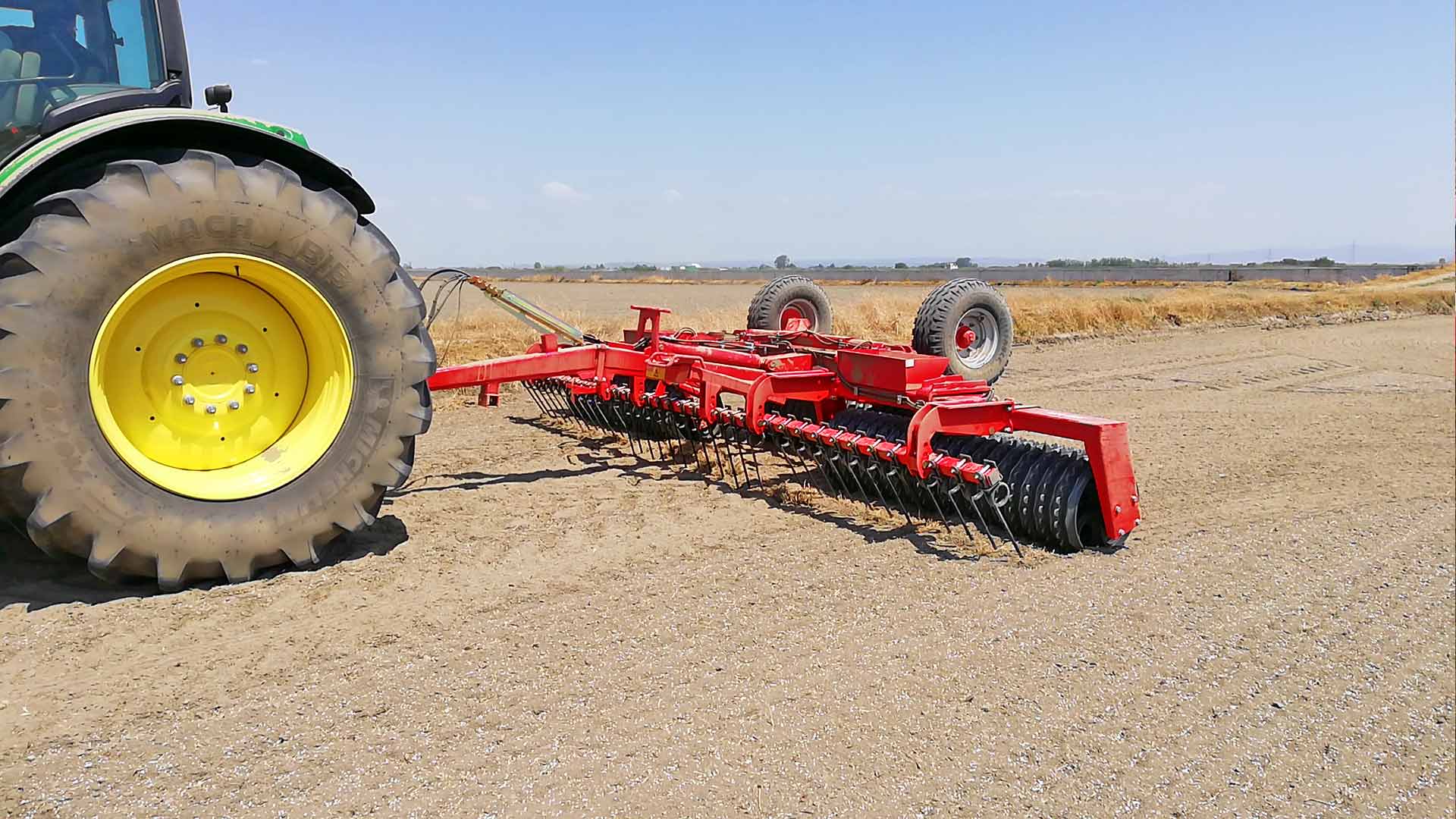

The Tip-Roller is available in working widths ranging from 4.5 m to 10.2 m. It features centre-suspended side sections and is fitted with HE-VA’s unique SAT-System (Spring-Active-Transfer System).
The SAT-System transfers weight from the centre section to the side sections, ensuring consistent soil compaction across the machine’s full working width.
| Model | No. of rings, pcs | Weight, kg | Power requirement, hp |
|---|---|---|---|
| 4.50 m | 30 – 87 | 1,510 – 2,810 | 60 – 90 |
| 5.40 m | 36 – 105 | 1,880 – 3,240 | 70 – 100 |
| 6.30 m | 42 – 123 | 2,110 – 4,190 | 80 – 120 |
| 7.30 m | 48 – 143 | 2,710 – 4,780 | 100 – 140 |
| 7.60 m | 45 – 151 | 2,778 – 4,984 | 100 – 140 |
| 8.20 m | 55 – 157 | 3,010 – 5,200 | 120 – 160 |
| 9.50 m | 63 – 180 | 3,870 – 6,350 | 130 – 170 |
| 10.20 m | 101 – 196 | 5,020 – 6,850 | 150 – 220 |
